CAT 6 Patch Panel
Cable Management Devices > Fiber Termination Box (Indoor)

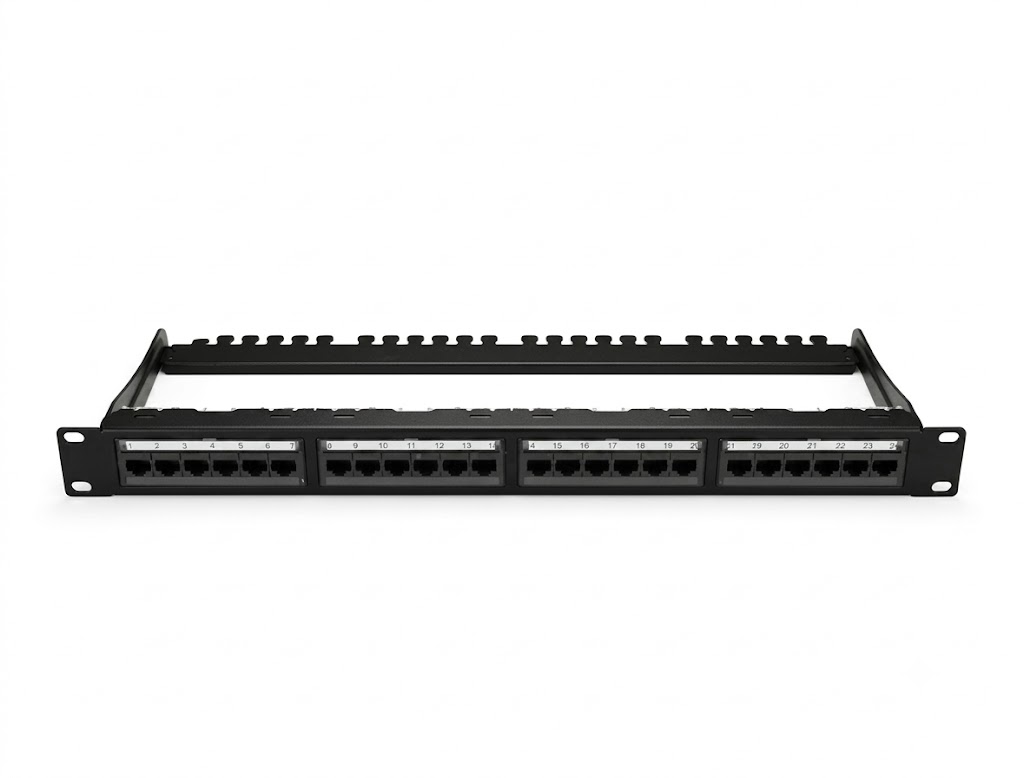

CAT 6 Patch Panel

24-port Cat 6 patch panel for organised copper network termination.

PDR Cat 6 24-Port Distribution Panel features 24 RJ-45 IDC ports with T568A/T568B support, meeting ISO/IEC 11801 and EIA/TIA standards for Gigabit and 10GBase-T structured cabling.
Request a QuoteDownload Datasheet (PDF)

Technical Specifications

Standard ComplianceISO/IEC 11801 | EIA/TIA 568A & 568B
Number of Ports24 x RJ-45
CategoryCat 6
Panel MaterialMetallic, SPCC (Steel, Cold-rolled, Coil)
Plastic BodyFireproof ABS UL-94V0
RJ-45 Jack HousingPBT / 8P8C, 50 micro-inch gold plated contacts
PCBFR-4 / 1.6 mm UL-94V0
IDC BodyFireproof ABS UL-94V0
IDC Pin MaterialPhosphor Bronze, Tinned
IDC Wire Range22 to 26 AWG solid conductor
Termination Tool110 or Krone punch-down tool
Color CodingT568A and T568B (Arrange: 8 7 6 3 2 1 4 5)
Insulation Resistance> 500 MΩ (minimum)
DC Resistance< 0.1 Ω (maximum)

Key Features

  • 24-port RJ-45 panel conforming to ISO/IEC 11801 and EIA/TIA 568A & 568B standards
  • Supports Cat 6 performance, suitable for Gigabit Ethernet and 10G-Base-T applications
  • Metallic panel (SPCC) with fireproof ABS UL-94V0 plastic body for durability and safety
  • RJ-45 jack housing: PBT / 8P8C with 50 micro-inch gold-plated contacts for reliable connectivity
  • PCB: FR-4 / 1.6 mm UL-94V0 for superior signal integrity
  • Supports both T568A and T568B colour-coding with clearly labelled port identification

Applications & Use Cases

  • Data centre patch rooms and server rack cable management
  • Enterprise LAN and structured cabling infrastructure
  • Office building and campus network distribution frames
  • Telecommunications rooms and main distribution frames (MDF / IDF)
