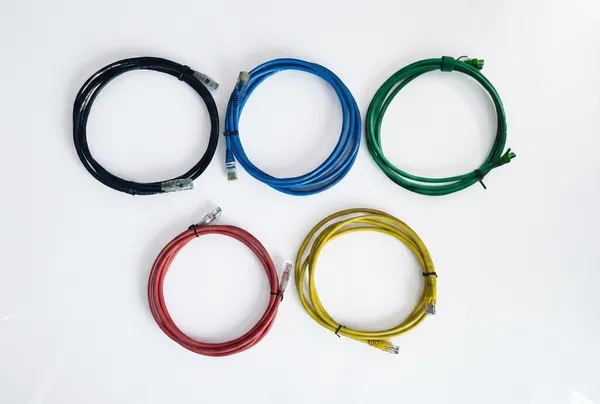

CAT 6 Patch Cord
High-speed copper patch cord
The PDR U/UTP Cat 6 Patch Cord provides flexible, reliable high-speed Ethernet connectivity with Cat 6 RJ45 connectors and PVC or LSZH jacket options.
Technical Specifications
Key Features
- U/UTP 4-pair construction with stranded 24 AWG (7×0.18 mm) conductors for flexibility and durability
- HDPE insulation for low capacitance and consistent electrical performance across all four pairs
- Cat 6 RJ45 plug termination with moulded PVC strain relief boot, colour-matched to outer jacket
- Outer jacket available in PVC or LSZH, specify at time of order to suit installation requirements
- Jacket outer diameter 5.8 ± 0.20 mm with ripcord for easy stripping during termination
- Pair colour coding: Blue/White, Orange/White, Green/White, Brown/White
Applications & Use Cases
- 100 Base-TX and 100 Base-T (100VG-AnyLAN) Fast Ethernet network connections
- 1000 Base-T Gigabit Ethernet structured cabling installations
- 1000 Base-TX high-speed enterprise LAN patch panel deployments
- Data centre patch panel and server rack interconnections requiring flexible, durable patch cords
