Horizontal Splice Closure
Cable Management Devices > Fiber Termination Box (Outdoor)

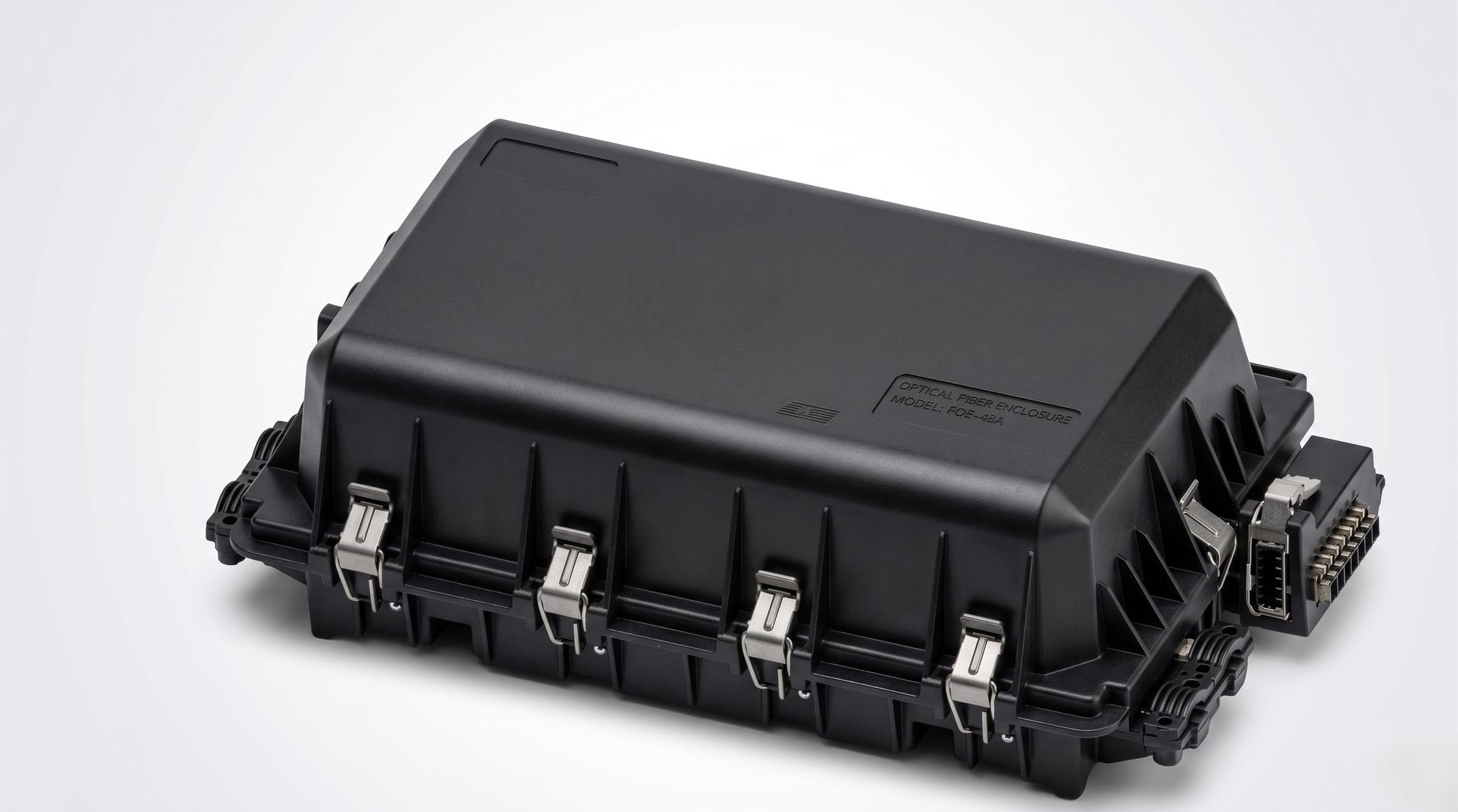

Horizontal Splice Closure

Horizontal splice closure for inline protection of fiber splices.

Re-enterable IP65 outdoor closure for duct, aerial, and wall mounting, supporting up to 48 splices (2×24) in a UV-resistant ribbed 445×240×140 mm body.
Request a QuoteDownload Datasheet (PDF)

Technical Specifications

ModelHTSC-TL16
Dimensions (L×W×H)445 × 240 × 140 mm
Splice Capacity48 splices (2 × 24)
Main Cable Ports4 ports, max 12 mm diameter
Drop Cable Ports16 ports, 3 mm / 3×2 drop cable
Mounting OptionsDuct, Aerial, Wall
Protection RatingIP65

Key Features

  • Suitable for cut, uncut, and taut sheath fiber optic cable applications
  • Compatible with all standard fiber optic cable types and diameters
  • Integrated sheath retention and central strength member fastening
  • Ribbed closure construction using UV-resistant, lightweight plastic
  • High resistance to chemical attack and UV degradation for extended outdoor life
  • Supports up to 48 splices (2 × 24) with 16 SC simplex adapter capacity

Applications & Use Cases

  • Fiber-to-the-Home (FTTH) and Fiber-to-the-Building (FTTB) feeder cable splicing
  • Telecommunications network outdoor splice points and cable junction management
  • Duct, aerial, and wall-mounted fiber optic cable distribution installations
  • Cable TV (CATV) and broadband infrastructure outdoor splice enclosures
