Home Termination Box (HTB)

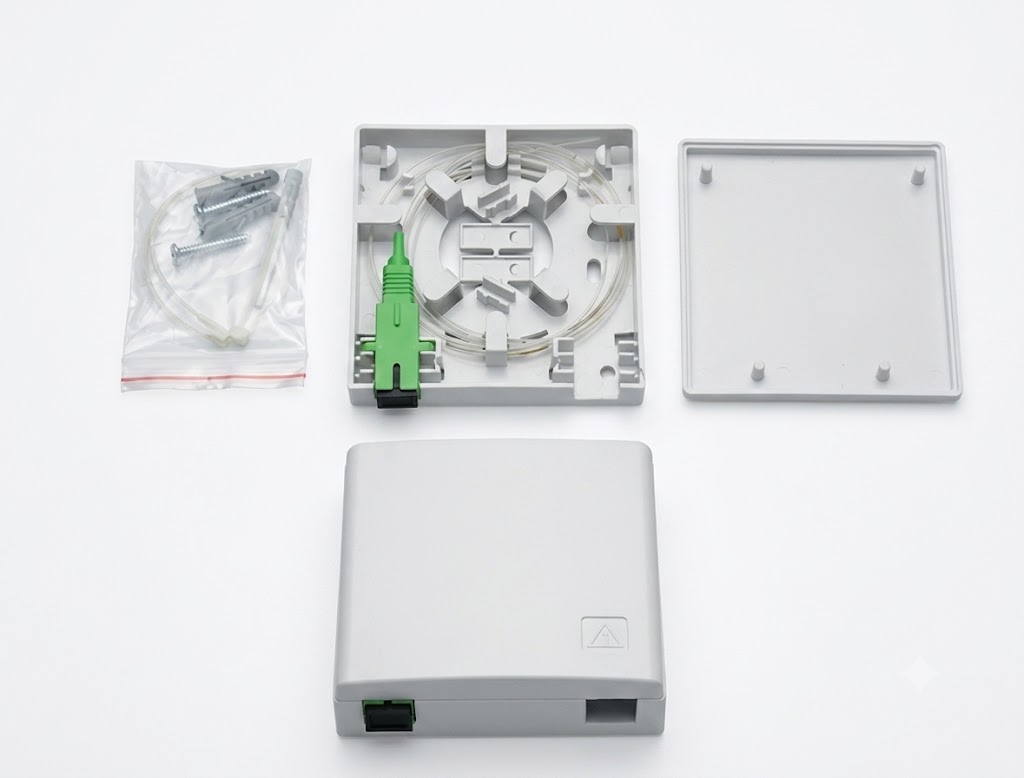

Name: Home Termination Box (HTB)
Brand: PDR World

Compact home termination box for neat FTTH subscriber-side fiber management.

PDR Home Termination Box (HTB) is a compact wall-mounted enclosure for fiber termination, splicing, adapters, FICs, pigtails and cable storage, with bend-radius protection and splice/slack management for reliable ONT/CPE connections.

Request a Quote Download Datasheet (PDF)

Technical Specifications

Dimensions (L×W×H)	86 × 86 × 25 mm
Fiber Count	2 Fiber
Colour	White
Material	ABS, PP
Insertion Loss	< 0.3 dB
Return Loss	≥ 65 dB (APC) / ≥ 55 dB (UPC)
Adapter Compatibility	SC, LC (standard form factor)
Configuration	Loaded / Unloaded
Standard	IEC 61754-4

Key Features

Compact, low-profile design occupies minimal wall space during installation
Inner slack storage area maintains minimum bend radius compliance at all times
Simple, tool-free installation with included mounting screws and cable ties
Inner tray accommodates splice sleeves for clean in-box splicing
Accepts both standard SC and LC optical adapters
Available in Loaded (with adapters) and Unloaded (adapter-free) configurations

Applications & Use Cases

Fiber-to-the-Home (FTTH) and Fiber-to-the-Building (FTTB) last-mile deployments
Optical CATV and broadband fiber distribution networks
Local Area Network (LAN) structured cabling termination points
ONT patch cord interface in residential and small commercial premises
