Hybrid Adapter
Passive Components > Adapters

Hybrid Adapter

Hybrid fiber optic adapters that mate different connector types.

Mates two dissimilar connector types (SC-FC, LC-SC, ST-FC, etc.) via a precision ceramic/phosphor-bronze sleeve, ≤0.3 dB IL and ≥50 dB RL, for SM/MM fiber in simplex or duplex.
Request a QuoteDownload Datasheet (PDF)

Technical Specifications

Complete technical specifications and performance graphs are provided in the official downloadable datasheet. Please contact PDR engineering for custom technical parameters.

Key Features

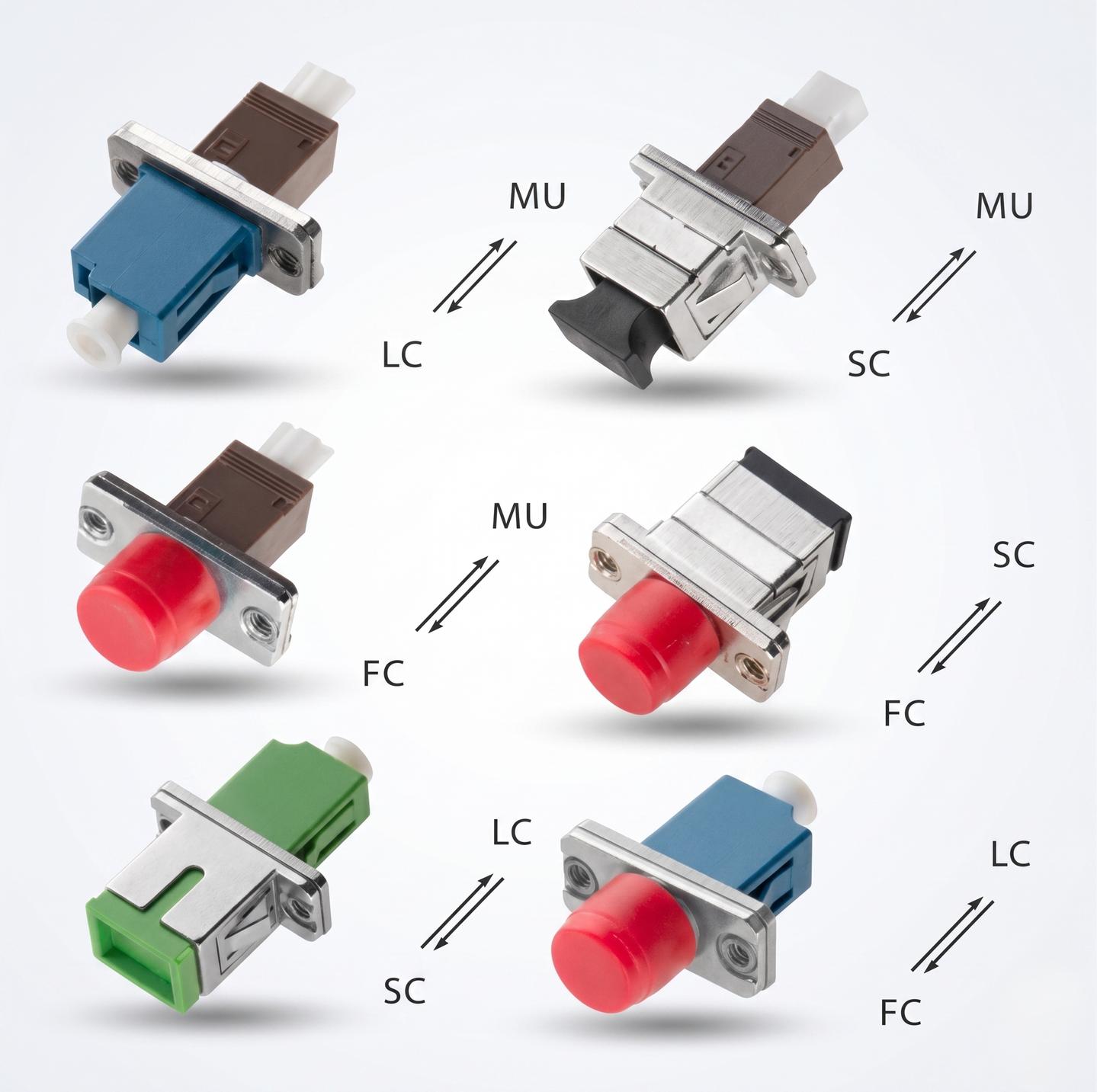

  • Enables connection between different connector types, SC-FC, LC-SC, LC-FC, ST-FC, LC-ST, and more
  • High-precision ceramic or phosphor bronze alignment sleeve for superior optical performance
  • Low insertion loss ≤ 0.3 dB and high return loss ≥ 50 dB (single-mode)
  • Compatible with both single-mode (SM) and multi-mode (MM) fibers
  • Available in simplex and duplex configurations to suit varied cabling requirements

Applications & Use Cases

  • Fiber-to-the-Home (FTTH) and Fiber-to-the-Building (FTTB) network installations
  • Telecommunications network upgrades requiring connector-type migration
  • Cable TV (CATV) and broadband infrastructure interconnects
  • Data center cross-connects and enterprise LAN cabling
