Fiber Optic Cleaner Pen MPO
Maintenance Tools > Cleaning Tools

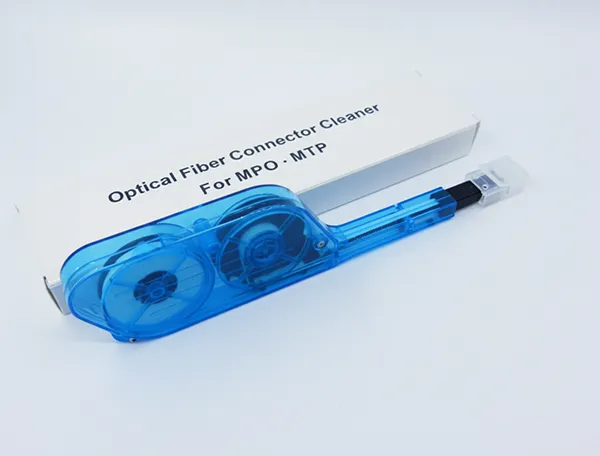

Fiber Optic Cleaner Pen MPO

One-click cleaner pen for multi-fiber MPO/MTP connector end-faces.

PDR MPO/MTP Fiber Optic Cleaner Pen provides fast, dry cleaning of male and female MPO/MTP connectors, cleaning all 12 fibers in one push, fitting adapters and exposed ferrules, and delivering up to 500 cleaning cycles.
Request a QuoteDownload Datasheet (PDF)

Technical Specifications

Compatible ConnectorsMPO / MTP
Connector StandardFOCIS-5 (IEC 61754-7)
Fiber ModeSingle-mode (SM) and Multimode (MM)
Ferrule ConfigurationMale (with guide pins) and Female (without guide pins)
Polish TypePC (Physical Contact) and APC (Angled Physical Contact)
Cleaning MethodDry mechanical, no alcohol or solvents required
Fibers Cleaned per Stroke12 fibers simultaneously
Cleaning CapacityUp to 500 cleanings per unit
OperationOne-handed push-and-release mechanism
Cleaning CompatibilityAdapter-mounted connectors and exposed jumper ferrules
Contaminant TypesDust, oils, fingerprints, and particulate matter
Cleaning StandardIEC 61300-3-35 (fiber end-face cleanliness)
DesignPen-style, handheld, narrow body for panel access

Key Features

  • Pen-style handheld design with narrow profile for tightly-spaced MPO adapter panels
  • Cleans all 12 fiber end-faces simultaneously in a single push-and-release action
  • Dry mechanical cleaning, no alcohol or wet chemicals required
  • Compatible with male (with guide pins) and female (without guide pins) MPO/MTP ferrules
  • Effective removal of dust, oils, and particulate contaminants per IEC 61300-3-35
  • Intermatability with FOCIS-5 (IEC 61754-7) compliant MPO connectors

Applications & Use Cases

  • Data centre MPO/MTP patch panel and trunk cable maintenance
  • Fiber-to-the-Home (FTTH) and Fiber-to-the-Building (FTTB) network installations
  • Telecommunications network construction, testing, and field maintenance
  • Cable TV (CATV) and broadband infrastructure connector cleaning
