Next Gen Optical Fusion Splicer (OPM + VFL)
Test and Measurement Equipment > Splicer

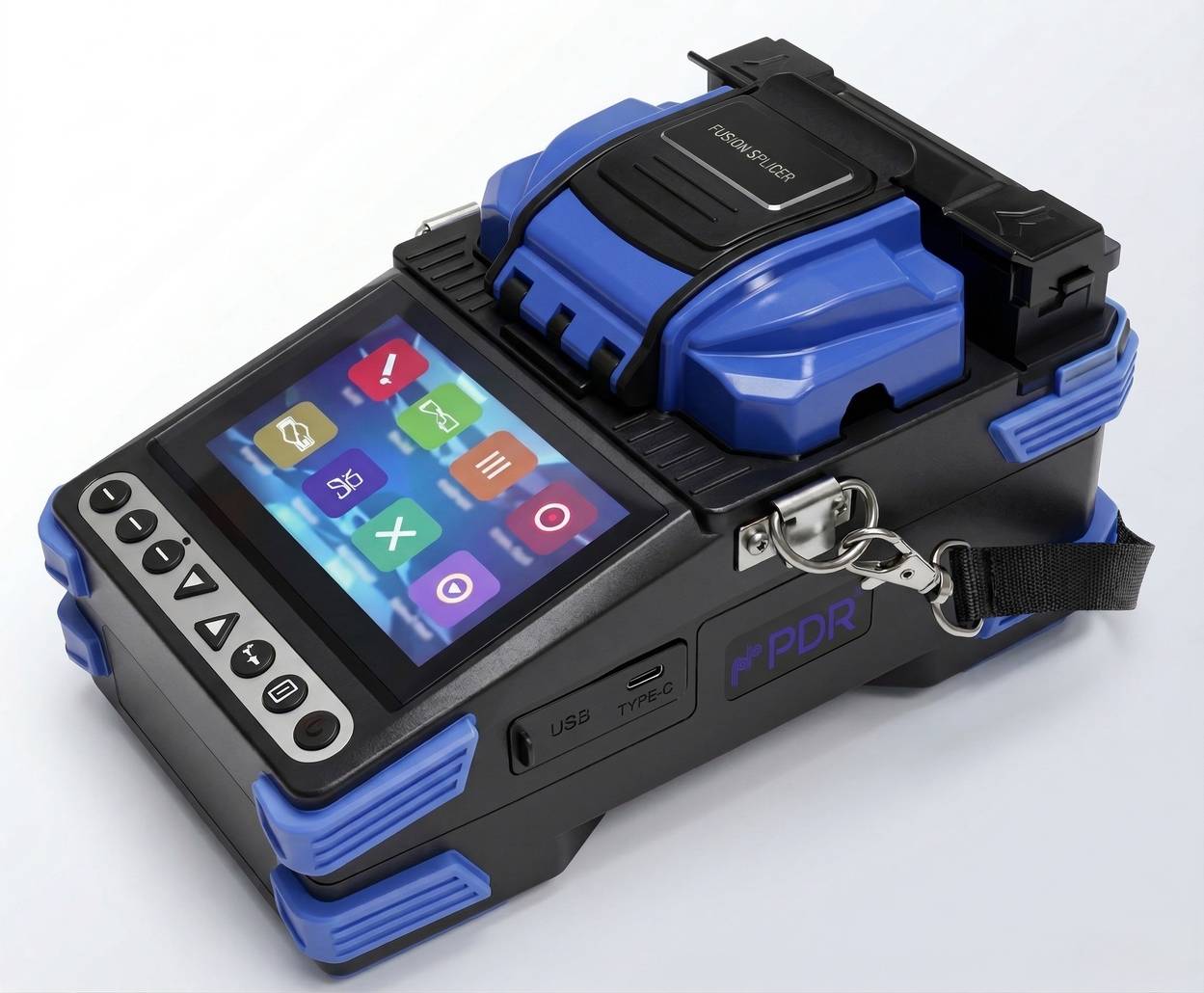

Next Gen Optical Fusion Splicer (OPM + VFL)

Next-generation fusion splicer with integrated power meter and visual fault locator.

The PDR4107S is a compact core-alignment fusion splicer for SM, MM, DS, and NZDS fibers, featuring 0.02 dB splice loss, a 5-second splice time, and built-in OPM and VFL for all-in-one field splicing.
Request a QuoteDownload Datasheet (PDF)

Technical Specifications

Applicable FibersSM | MM | DS | NZDS
Fiber CountSingle
Cladding Diameter80 to 150 µm
Coating Diameter1 to 3 mm
Fiber Aligning MethodAutomatic / Manual
Focusing MethodFour-motor automatic focusing
Typical Splice LossSM: 0.02 dB | MM: 0.01 dB | DS: 0.04 dB | NZDS: 0.04 dB
Return Loss> 60 dB
Splicing Programs53 preset + 40 user-defined
Splicing ModesAuto / Calibrate / Normal / Special
Operating ModeAutomatic / Manual
Typical Splicing Time5 seconds (standard SM fiber)
Tube Heating Programs9 preset + 24 user-defined
Tube Heating Time15 seconds | Protection sleeve: 60 mm / 40 mm

Key Features

  • Compact, lightweight design ideal for field installation and network maintenance
  • Core alignment technology ensuring high-precision, low-loss fiber splicing
  • Fast 5-second typical splicing time with automatic and manual operating modes
  • Supports SM, MM, DS, and NZDS fiber types for maximum versatility
  • Built-in Optical Power Meter (OPM), measurement range -50 to +26 dBm at 10 wavelengths
  • Built-in Visual Fault Locator (VFL) with 10 mW output for fault identification

Applications & Use Cases

  • Fiber-to-the-Home (FTTH) and Fiber-to-the-Building (FTTB) network installations
  • Telecommunications network construction, deployment, and maintenance
  • Cable TV (CATV) and broadband infrastructure rollout
  • Data centre interconnects and enterprise LAN fiber cabling
