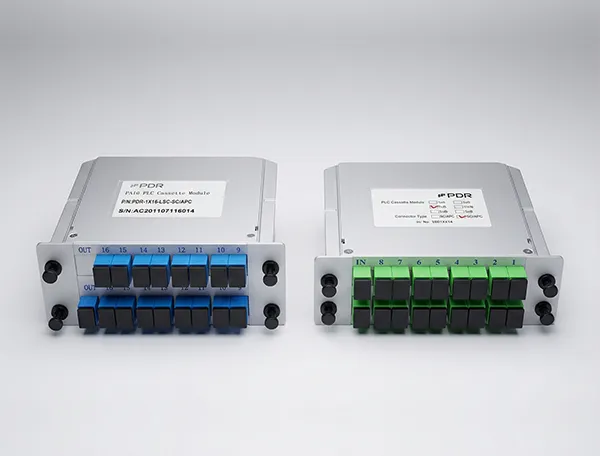

PLC Splitter

Planar lightwave circuit splitters for low-loss PON power splitting.

PDR PLC Splitters offer passive optical power splitting over 1260–1650 nm in 1×N/2×N configurations with multiple packaging options for FTTx, PON, LAN, CATV, and test applications.
Request a QuoteDownload Datasheet (PDF)

Technical Specifications

Complete technical specifications and performance graphs are provided in the official downloadable datasheet. Please contact PDR engineering for custom technical parameters.

Key Features

  • Planar waveguide chip technology for low insertion loss, high uniformity, and excellent long-term stability
  • 1×N configurations: 1×2, 1×4, 1×8, 1×16, 1×32, 1×64
  • 2×N configurations: 2×2, 2×4, 2×8, 2×16, 2×32, 2×64
  • Wide operating wavelength: 1260 to 1650 nm, covers all standard PON and WDM bands
  • Low polarization-dependent loss (PDL): ≤0.2 dB (1×2) to ≤0.4 dB (1×64)
  • High directivity ≥55 dB and return loss ≥55 dB (1×N) / ≥50 dB (2×N)

Applications & Use Cases

  • Telecommunications network infrastructure & FTTH/FTTX deployments
  • Enterprise data centres, high-density optical routing, and campus LANs
  • Broadband CATV networks and carrier-grade fiber backhaul
