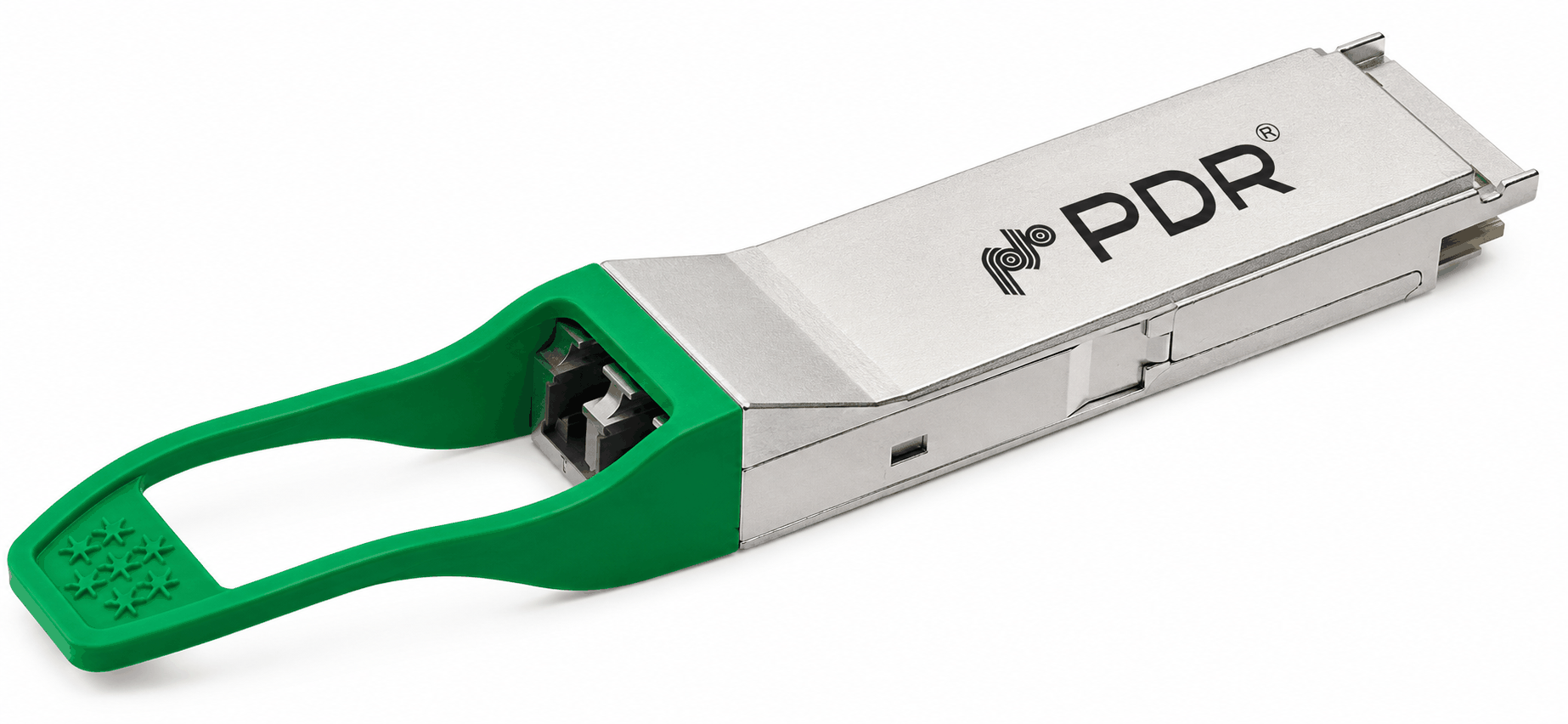

PDR World
400G
Active Components > SFP Transceivers

400G

Next-generation high-capacity throughput

PDR optical transceivers deliver hot-pluggable, MSA-compliant 1.25G–400G connectivity with SFP to QSFP-DD form factors, DDM, and SM/MM, CWDM/DWDM/BiDi support.
Request a QuoteDownload Datasheet (PDF)

Technical Specifications

SFPUp to 2.67 Gbps · SM/MM · up to 80 km
SFP+Up to 11.3 Gbps · SM/MM · up to 40 km
SFP2825.78 Gbps · SM/MM · up to 10 km
QSFP+ (40G)41.2 Gbps (4×10G) · up to 10 km
QSFP28 (100G)103.1 Gbps (4×25G) · up to 2 km
QSFP-DD (200G/400G)200G / 400G · up to 2 km
Copper SFP10/100/1000BASE-T · Cat 5 · 100 m
Operating Temperature0°C to 70°C
ComplianceRelevant MSA, IEEE 802.3, RoHS/REACH

Key Features

  • MSA-compliant form factors: SFP, SFP+, SFP28, QSFP+, QSFP28, QSFP-DD and Copper SFP
  • Aggregate data rates from 1.25 Gbps to 400 Gbps
  • Single-mode and multimode options with reach up to 80 km
  • Hot-pluggable with duplex LC (SFP) and MPO/MTP (QSFP) receptacles
  • Digital Diagnostic Monitoring (DDM/DOM) on optical variants
  • CWDM, DWDM and BiDi variants available on request

Applications & Use Cases

  • Telecom backbone, metro Ethernet and long-haul DWDM
  • Data-centre server-to-switch and spine aggregation
  • Enterprise and campus LAN uplinks
