EasyGet WiFi Wireless Fiber Endface Microscope
Test and Measurement Equipment > Endface Inspector

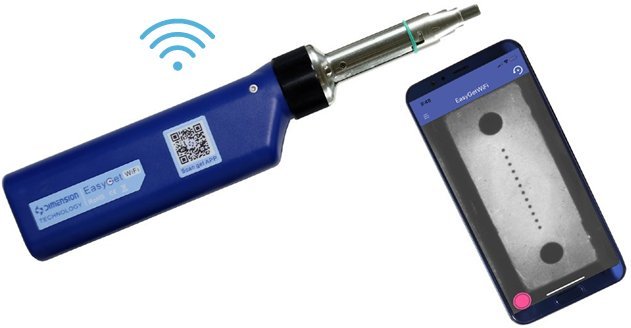

EasyGet WiFi Wireless Fiber Endface Microscope

Wireless endface microscope with automatic pass/fail analysis on Windows, Android, and iOS.

Wireless and USB-C digital fiber endface inspector with automatic pass/fail analysis, 400X magnification, and real-time video transmission to smartphones, tablets, and PCs.
Request a QuoteDownload Datasheet (PDF)

Technical Specifications

Resolution0.42 µm (<1 µm defect detection)
Image Sensor5-Megapixel CMOS
Optical Magnification10X (Optical) / 400X (Digital Display)
Field of View512 µm × 384 µm
Signal OutputWiFi 802.11 b/g/n & USB Type-C
Operating SystemsWindows / Android / iOS
Battery Life5 hours continuous (Rechargeable Li-ion)
Adapter CompatibilitySC, FC, ST, LC, E2000, MPO/MTP (50+ tip variants)
LightingCoaxial White LED
Operating Temperature-10°C to +50°C

Key Features

  • WiFi and USB Type-C data transfer with real-time video and automatic pass/fail analysis
  • Compatible with Windows, Android, and iOS devices
  • 0.42 µm resolution, 5 MP CMOS sensor, 10X optical magnification, <1 µm particle detection
  • More than 50 adapter types available including SC, FC, ST, LC, and multi-fiber MPO/MTP
  • Built-in rechargeable Li-ion battery, up to 5 hours; usable while charging
  • White LED illumination for low-light and dark environments
  • One-click capture with automated IEC standard pass/fail report generation

Applications & Use Cases

  • 5G optical network construction and field maintenance
  • Data centre high-density connector inspection
  • High-reliability mission-critical fiber connections
  • Laboratory, factory, and manufacturing QA testing
  • Endface inspection before OTDR and fusion splicing testing
