CAT 6 Patch Panel
Lorem ipsum dolor sit amet, consectetur adipiscing elit.
Contact A Sales Expert
Request a Quote
Request a Demo
Overview:
General Description

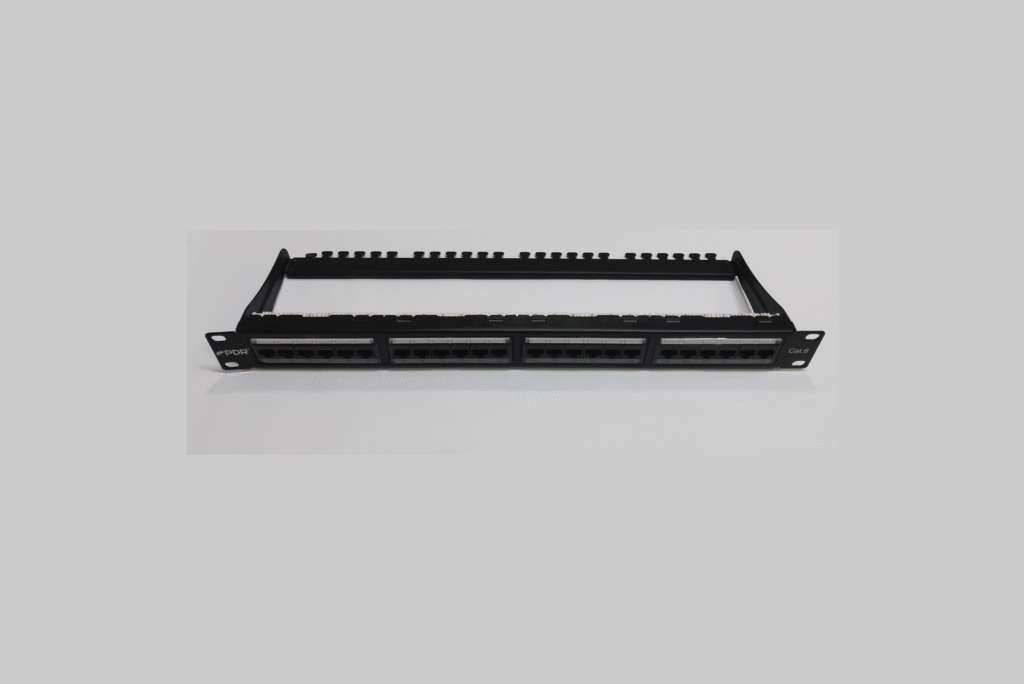

PDR’s Cat 6 24 Port Distribution Panel is designed for High speed Network applications. Its performance confirms to ISO/IEC 11801 specifications and it meets EIA/TIA 568 A &B standards. It is suitable for mounting on 19” standard racks. It occupies 1U height.
Performance
Meets Cat 6 EIA/TIA 568B, 2-1 Standard.
Electrical Specifications
Insulation Resistance: 500M ohms (min.)
Contact Resistance: 20m ohms (max.)
Current Rating: 1.5 Amps.
DC Resistance: 0.1 ohm (max.)
Withstanding Voltage: 1000 VAC RMS @60Hz / 1 min
PDR’s Cat 6 24 Port Distribution Panel is designed for High speed Network applications. Its performance confirms to ISO/IEC 11801 specifications and it meets EIA/TIA 568 A &B standards. It is suitable for mounting on 19” standard racks. It occupies 1U height.
Performance
Meets Cat 6 EIA/TIA 568B, 2-1 Standard.
Electrical Specifications
Insulation Resistance: 500M ohms (min.)
Contact Resistance: 20m ohms (max.)
Current Rating: 1.5 Amps.
DC Resistance: 0.1 ohm (max.)
Withstanding Voltage: 1000 VAC RMS @60Hz / 1 min
